Overview

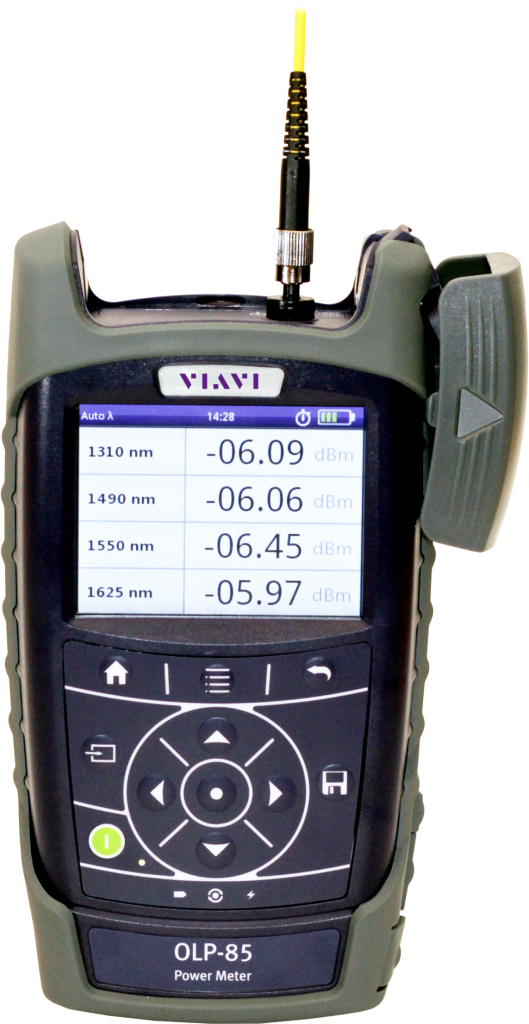

The SmartClass™ Fiber OLP-85 and -85P combine pass/fail fiber inspection and optical power measurement (OPM) into one solution. With a 100 dB dynamic range, the OLP-85 and -85P handheld optical power meters are professional, versatile, and compact instruments perfect for any fiber-optic network power or loss test applications. Their high accuracy over the entire range means that the OLP-85 and -85P perfectly fit applications where low power or very high power needs to be measured.
Benefits
- Complete jobs faster, correctly, and on time—right the first time
- Automated pass/fail fiber inspection analysis with the optional P5000i microscope, also available with integrated PCM
- Compact, rugged, weather-proof design
Applications
- Measurement of optical power (absolute and relative)
- Measurement of optical insertion loss together with a VIAVI optical light source OLS-3x or OLS-8x
- Inspection of optical connectors (IBYC)
- In-service loss test option
Key Features
- Battery-operated field-portable optical power meters with an 800 to 1700 nm measurement wavelength range (1 nm incremental setting) and high accuracy over an ultra-wide 100 dB dynamic range
- 2.5 mm and optional 1.25 mm universal push-pull (UPP) adapter system compatible with all optical connector types
- 3.5-in color touch screen with integrated stylus
- Individual threshold settings for power and loss pass/fail analysis
- Onboard fiber inspection and test results storage with time stamp
- Data transfer and remote control via USB or Ethernet interface
- Auto-lambda and multi-lambda test functions in combination with VIAVI light sources
