Features

• Dual Channel DC Power Output

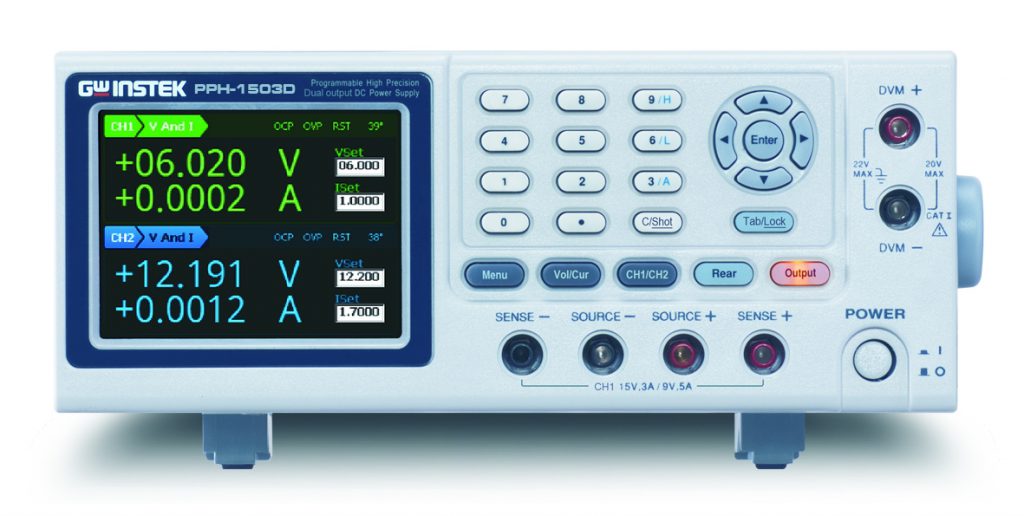

• PPH-1503D (CH1: 0~15V/0~3A or 0~9V/0~5A; CH2: 0~12V/0~1.5A)
• PPH-1506D (CH1: 0~15V/0~3A or 0~9V/0~5A; CH2: 0~12V/0~3A)
• PPH-1510D (CH1: 0~15V/0~3A or 0~9V/0~5A, 0~4.5V/0~10A(Rear terminal); CH2: 0~12V/0~3A)
• 3.5 inch TFT LCD Display
• Built-in DVM Measurement Function
• High Measurement Resolution (1mV/0.1μA for 5mA Range)
• Current Sink Function (Maximum : 3.5A)
• Pulse Current Measurement
• Long Integration Current Measurement
• Sequence Function (Sequential power output)
• Built-in Battery Simulation Function
• OVP, OCP, OTP & Temperature Display for Heat Sink
• Support USB (Device& Host)/GPIB/LAN
• 5 Groups of Save/Recall Setting
• External RELAY Control
