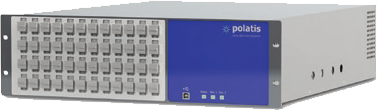

Polatis Optical Matrix Switches

The Polatis range of optical matrix switches provide versatility in optical switching applications

Overview

The Polatis range of optical matrix switches are high-performance, fully non-blocking all-optical matrix switches, available with port counts from 4×4 up to 192×192. Based on Polatis’ patented DirectLight® optical switching technology that has been proven in the most challenging defense applications and field proven in a wide range of commercial applications by major network equipment manufacturers, they are designed to meet the highest performance, security and reliability needs of mission-critical applications with low optical loss, compact size, low power requirements and fast switching speeds.

The product range includes:

  • Optical Switch Module (OSM) available in single-mode versions from 4×4 up to 32×32 and in multimode versions from 4×4 up to 16×16
  • Optical Switch Tray (OST) available in single-mode versions from 4×4 up to 32×32 and in multimode versions from 4×4 up to 16×16, with optional internal power monitors and variable attenuators available.

Highlights

  • Non-blocking from 4×4 to 192×192 ports
  • Polatis’ patented DirectLight® Beam-Steering technology
  • Optional fully integrated power monitors, variable optical attenuation and optical taps
  • Advanced dynamic web GUI and network management tools reduce costs and improve management

Key Features

  • Low insertion loss
  • Low Polarisation Dependent Loss
  • Fast switching speed
  • Excellent repeatability
  • High power handling
  • Operates with dark or lit fiber
  • Fully non-blocking
  • Bi-directional operation
  • Protocol and bit rate independent
  • Easy to integrate
