NEON® Signal Mapper

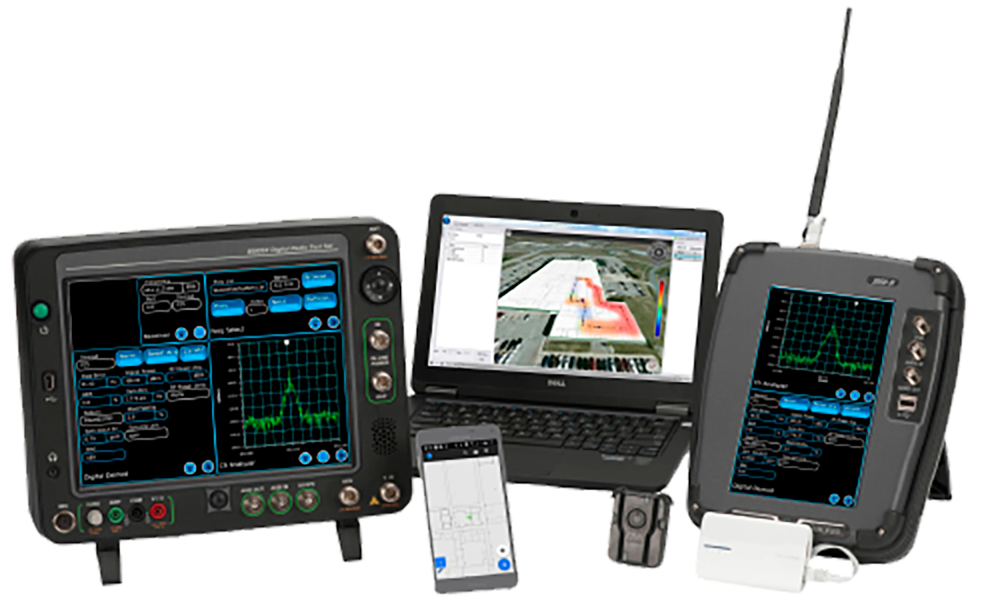

Signal mapping to provide complete critical in-building coverage. VIAVI Solutions and TRX Systems are providing a new joint solution that integrates TRX’s NEON Signal Mapper Application with the VIAVI 3550R and the 8800SX Radio Test Sets.

Overview

The VIAVI NEON® Signal Mapper automates the geo-referencing cloud storage, and 3D visualization of LMR test data for technicians who use VIAVI test equipment to record and analyze two-way radio signals inside building and outdoors. Integrated NEON capability to automatically collect geo-references test data with the VIAVI 3550R and the 8800SX test sets save valuable time and money.

Benefits

  • Provide continuous logging of data with a high density of data points, including within typically difficult to map stairwells, elevators, and tunnels.
  • Supports rapid analysis of signal coverage with 3D visualization and easy export of time-stamped data
  • A compare feature enables the current results to be compared with previous results.
  • Includes report generation capability that empowers the user to quickly document the results.
  • Combination of multiple paths enable the user to create a single 3D view of a mapped building

Features

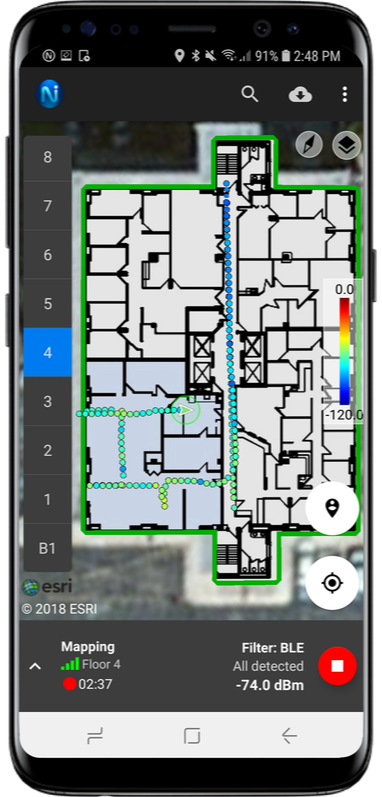

  • Automatically calculate indoor location and correlate with radio signal data; eliminating manual check-ins.
  • Remove data recording errors in complex buildings through automatic indoor path determination.

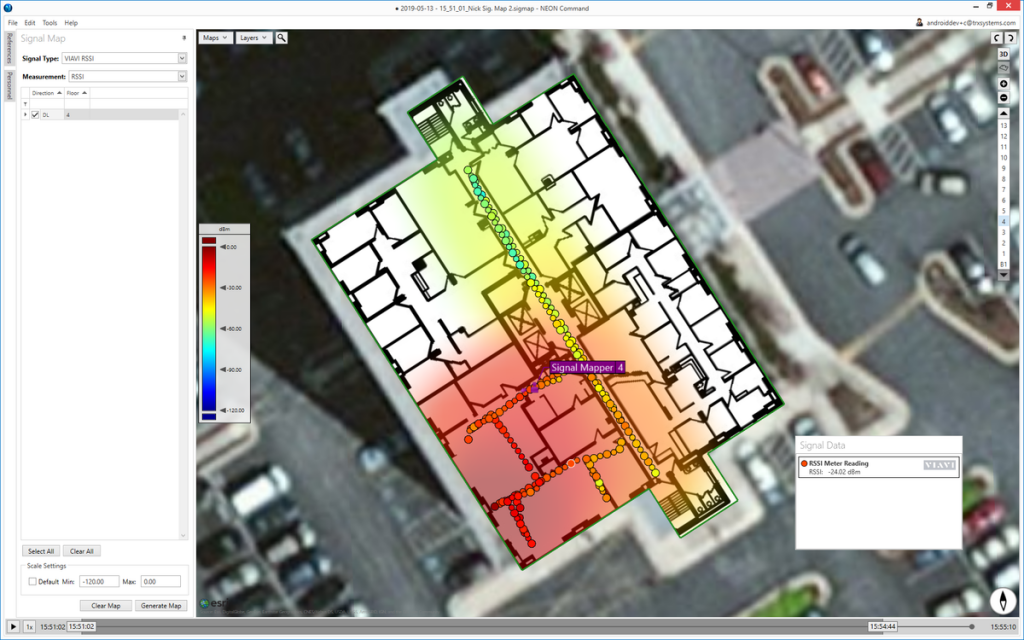

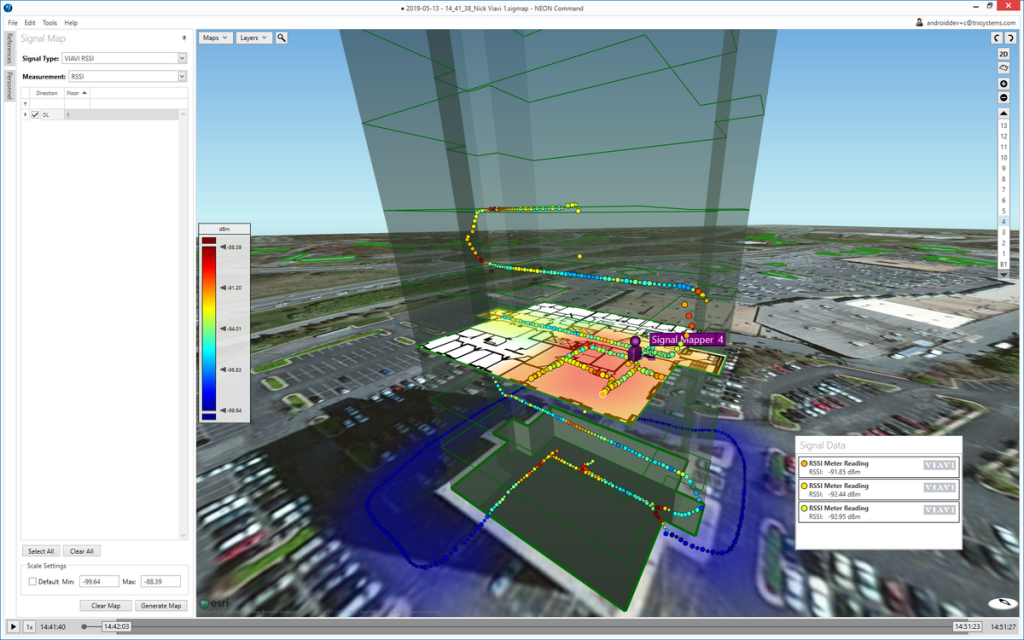

  • Coverage heat maps can be visualized in two and three dimensions.
  • Users can easily export all data collected in a iBwave format that can be opened in the iBwave Design Collection Module.
  • Replay feature provides a playback of the walk test.
