Features

• 200/100/70MHz bandwidth selections: 2 or 4 channels

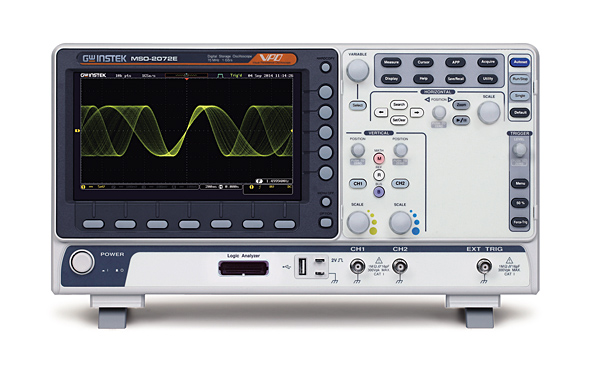

• MSO-2000E equips with a 16-channel logic analyzer
• MSO-2000EA equips with a 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator
• Real time sample rate for each channel is 1GSa/s (2-channel models);Maximum real time sample rate is 1 GSa/s (4- channel models)
• Maximum 10M memory depth and VPO waveform display technology
• Waveform update rate up to 120,000 wfms/s
• 8 ” WVGA TFT LCD screen display
• Free Frequency Response Analyzer Software
• Maximum 1M FFT provides higher frequency domain resolution measurements
• High Pass, Low Pass and Band Pass Filter Functions
• 29,000 segmented memory sections and waveform search function
• I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
• Data log function is able to track signal changes up to 100 hours
• Network storage function
