DESCRIPTION:

The MRD7050C is a compact, self-contained surveillance system featuring simultaneous wideband direction finding and signal monitoring. It’s compact size and being DC-powered makes the MRD7050C particularly suitable for compact mobile installations and transportable applications.

KEY FEATURES:

• Frequency range of 1 MHz to 3.6 GHz or 20 MHz to 9 GHz (antenna dependent)
• Instantaneous  bandwidth: 20 MHz
• DF Rate > 1 GHz/s
• Minimum signal duration of < 550 µsec (Fast Mode)
• Integrated monitoring receiver for simultaneous monitoring and direction finding
• DC-powered
• Band scanning & memory channel scanning
• Integrated GPS receiver
• Multi-level BITE for improved maintenance
• Correlative interferometric DF Algorithm
• GSM & TETRA parameter measurement

APPLICATIONS:

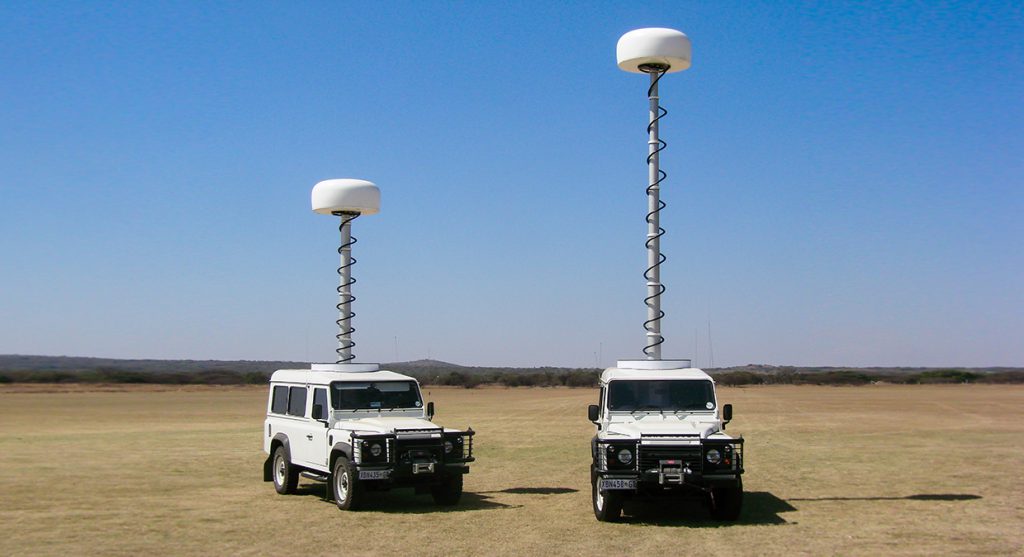

• Compact mobile installations
• Transportable applications
