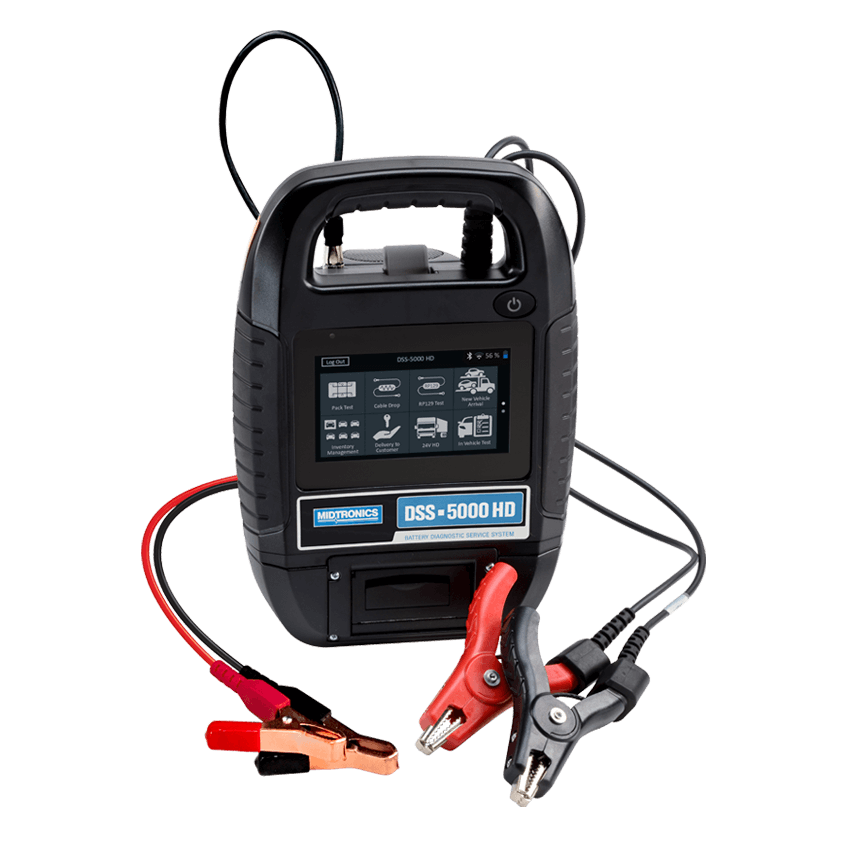

DSS-5000 HD

Overview

Heavy-Duty Battery & Electrical System Analyzer

DSS-5000 HD Heavy-Duty Battery Diagnostic Service System is designed specifically for heavy-duty commercial truck and fleet applications, addressing both preventative maintenance and battery warranty management.

  • Preventative maintenance capabilities – cost of road service is so costly in terms of time, towing cost and lost customer confidence
  • Warranty Management – size and cost of commercial batteries
  • Promotes quick error-free testing with pre-programmed service apps that include test flows compliant with RP-129A, pack test, and cable drop testing procedures
  • Reduces technician time and data entry error rates via a built-in camera that scans vehicle VIN and pre-populates accurate OEM specs in the tester

DSS-5000 HD SELECTED FEATURES

  • Includes multimeter cable
  • Email or print test results on a networked printer
  • Supports top, remote and side post testing
  • 3-meter field-replaceable heavy-duty test leads
  • Three-piece design including a detachable controller with 5-inch full-color touchscreen display, tester pod, and charging dock
  • VIN capture via integrated camera associates VIN with test records

Conductance Profiling™

Combines our conductance algorithm with new proprietary technology to:

  • Identify batteries with poor reserve capacity that may start the car, but could fail to support other vehicle accessories
  • Ensures service readiness for emerging vehicle systems and batteries with new points of battery failure

Analytics and Communication

  • BMIS integration supports automated over-the-air software updates and analytical reporting
    • Capture and review battery testing data
    • Visibility into process compliance
    • Reporting on self-diagnostics to improve tool uptime
    • E-mail results via built-in Wi-Fi

Product Specifications

APPLICATIONS

  • Group 31
  • Commercial 4D / 8D
  • Automotive

SUPPORTED BATTERY TYPES

  • 12- And 24-Volt Batteries / Battery Packs
    • Flooded Lead-Acid
    • AGM Spiral & Gel
    • Enhanced Flooded (EFB)
    • NorthStar Pure Lead
  • 12- And 24-Volt Charging Systems

BATTERY RATINGS

  • CCA
  • CA
  • JIS
  • DIN
  • SAE
  • IEC
  • EN
  • EN2

DIAGNOSTIC TECHNOLOGY

  • Conductance Profiling

COMMUNICATION

  • Wireless Communication
    • Class 2 Bluetooth
  • Wi-Fi Communication
    • 2.4 Ghz 802.11 B, G, N

POWER REQUIREMENTS

  • Rechargeable 12V Battery (Controller)
  • 6 ‘AA’ Batteries (Tester Pod)
