CPRIAdvisor CAP-100/CAE-100/CAM-100

Increasing RF Visibility in Radio Access Networks
CPRIAdvisor is an interference monitoring solution that increases RF visibility by performing continuous monitoring of the mobile spectrum, and allowing remote access to expedite maintenance and problem resolution.

Overview

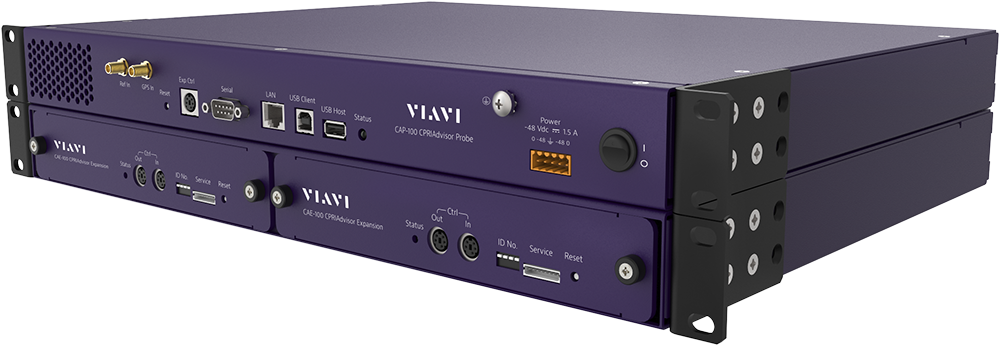

CPRIAdvisor is an interference monitoring solution comprising a stationary cell-site probe (CAP-100), optional expansion modules (CAE-100) to increase monitoring port density for distributed antenna systems (DAS) or centralized radio access network (RAN) topologies, and a remote management program (CAM-100) that controls the probes and monitors test results.

Benefits

  • Visibility: CPRIAdvisor increases RF visibility by performing continuous monitoring of the mobile spectrum and allowing remote access to expedite maintenance and problem resolution
  • Scalability: CPRIAdvisor is based on network probes with RF over Fiber (RFoFiber) technology, and can de-map RF components from fiber front-haul (CPRI or OBSAI) with flexibility in port density, providing solutions for any type of cell-site. Whether it is a macro cell with a smaller number of front-haul fiber links or a large DAS/C-RAN with hundreds of front-haul links, CPRIAdvisor solution can handle both.
  • Efficiency: Depending on the network configuration, CPRIAdvisor can save more than 50% in terms of time and cost by offering unmatched maintenance efficiencies, and ultimately providing better mobile services and end user experience.

Applications

  • Macro-Cell RF spectrum monitoring
  • C-RAN/DAS RF spectrum monitoring

Key Features

  • Alarm monitoring and notification
    • CPRI/OBSAI layer-2 alarm monitoring
    • Optical received (RX) power meter
    • RSSI alarm logging (saved with spectrum data and alarm details)
    • PIM detection and alarm logging (saved with spectrum data and alarm details)
  • Real time spectrum measurement
    • RF spectrum analysis with multiple-trace and markers
  • Spectrum logging and replay
    • Spectrum logging for extended measurements (e.g. 7 days up to 12 trace at a time).
    • Spectrum/spectrogram replay capability for post analysis.
  • Easy to set up
    • Stores up to ten thousand CPRI profiles in allowing auto-configuration for proper RF measurements (IQ de-mapping) of any RRH.
    • Profile database editing, enabling faster configuration in multi-site topologies.
