Overview

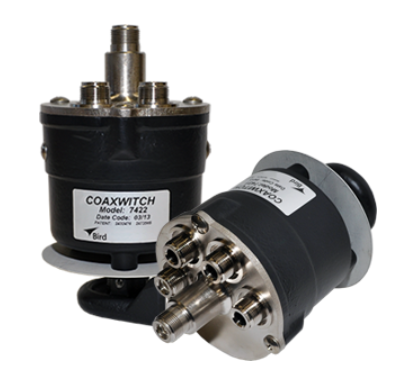

Multi-Position, RF Selector Switches

Bird^®, 50-Ohm Coaxial Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4 1/2″ of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position.

The switches have a valuable advantage that they cannot be operated accidentally, but must be operated by intentional sequential movement. The knob must be grasped, pulled out, rotated and pushed in to make contact.

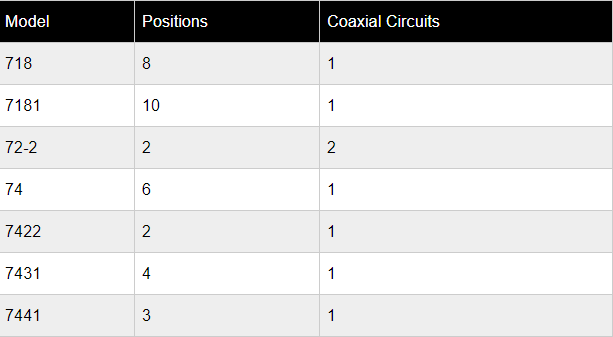

Model Selections
