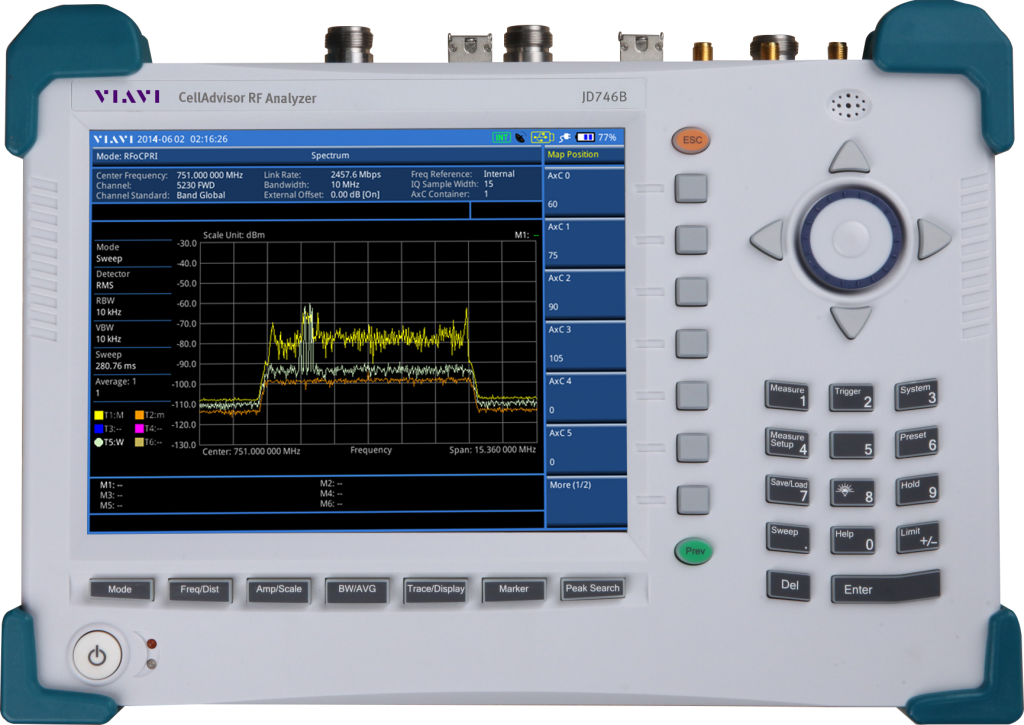

CellAdvisor RF Analyzers JD746B, JD786B

CellAdvisor RF Analyzer combines the functionality of spectrum analysis, cable and antenna analysis, and power measurements, covering all of your needs for test, acceptance, and troubleshooting of the physical layer of cellular networks.

Overview

Benefits: CellAdvisor RF Analyzer

  • RF measurement over CPRI
  • Multi-function Integration
  • Easy-to-use User Interface with backlight key panel
  • One‐button standards based measurements of wireless signals

Applications: CellAdvisor RF Analyzer

  • Interference Analyzer
  • Channel Scanner
  • CW Signal Generator
  • Cable & Antenna Analyzer: 5 MHz to 4 GHz
  • High Accurate Power Meter: 10 MHz to 4 GHz
  • Fiber Inspection
  • Interference Analysis and PIM detection over CPRI
  • Fronthaul and RRH verification over CPRI

Key Features: CellAdvisor RF Analyzer

  • Spectrum Analyzer up to 8GHz
  • Layer-2 term & monitoring for CPRI fronthaul
  • Interference Analysis over CPRI fronthaul
  • PIM Detection over CPRI fronthaul
  • Channel Power and Adjacent Channel Power
  • Spectrum Emission Mask  and Occupied Bandwidth
  • Two port transmission measurements
  • Bluetooth remote control within 100M
  • Cloud enabled via VIAVI StrataSync
  • AM/FM Audio Demodulation
  • PIM detect
  • Dual spectrogram view
  • RF power meter (internal and external)
  • Unique optical power meter (with appropriate USB accessory)
  • Fiber Inspection via P5000i microscope

Get comprehensive RF performance measurements with the rugged, lightweight CellAdvisor RF Analyzer.

Data Sheets

AntennaAdvisor Interference Finder Quickly pinpoints RF interference Download
CellAdvisor 28 GHz Spectrum Analyzer Module Download
CellAdvisor : JD730B Series RF Directional and Terminating Power Sensors Download

Brochure

CellAdvisor EMF Analyzer for simple and accurate radiation and emissions measurements Download
CellAdvisor JD746B/JD786B RF Analyzers Download
The CellAdvisor Portfolio : Approved by major mobile operators Download
Learn More
