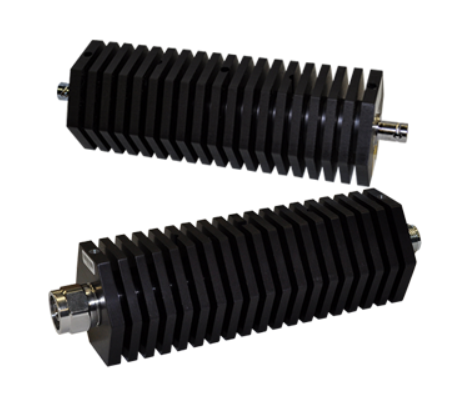

75-A Series

75 Watt, Bi-Directional RF Attenuators

75-A Series, 75 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quailty, robust construction and conservative power ratings.

Features

  • Self cooling design, needs no cooling plate.
  • Fully shielded against production of extraneous radiation.
  • Rugged construction.
  • Broadband operation.
  • Other attenuation values available upon request.
  • Models to cover all LTE frequencies.

Model Nomenclature

Power Ratings (W)Product TypeConnector GenderConnectors**Attentuation Value (dB)
75 WattAM/F – Male/FemaleA – SMA03 – 3 dB
75 WattAF/F – Female/FemaleB – BNC06 – 6 dB
75 WattAN – N10 – 10 dB
75 WattAT – TNC20 – 20 dB
75 WattAE – IEC 7/1630 – 30 dB

Example: 75-A-MFN-03 (75 Watt, A Series, Male/Female N Connector, 03 dB)
**Call or Request Information below for custom connector options not shown
