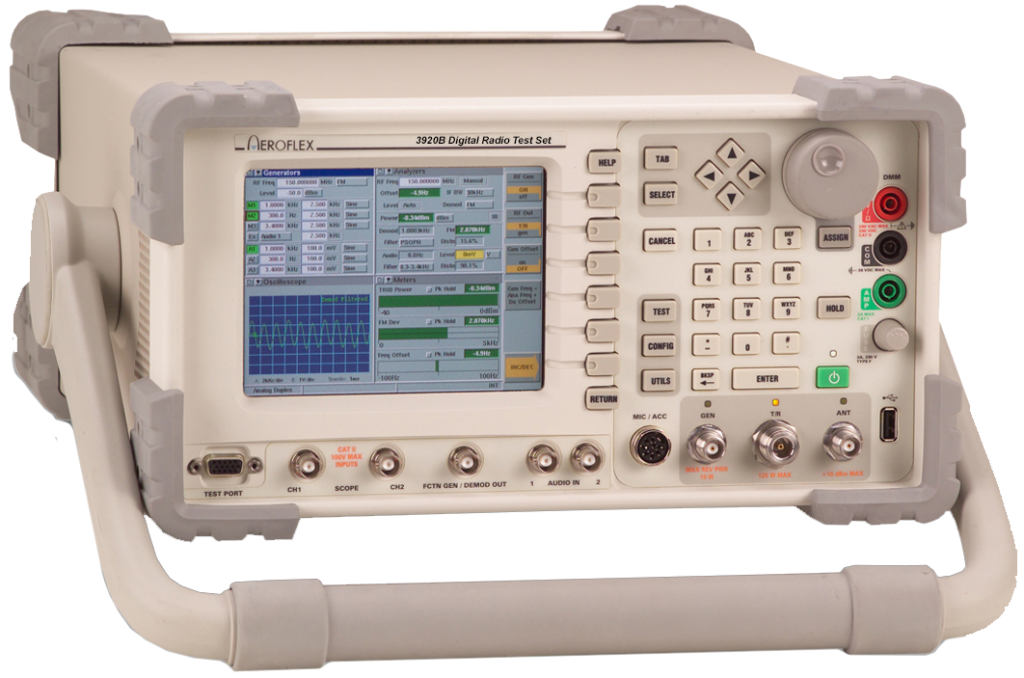

3920B Series Analog and Digital Radio Test Platform

The industry standard for analog and digital radio test

Overview

Benefits

  • The 3920B features a low phase noise RF signal generator for performing critical receiver testing required on critical communication radios.
  • The 3920B includes many standard features as well as a host of optional test capabilities, digital personalities, and the Auto-Test II Alignment capability.
  • The instrument provides a comprehensive range of general-purpose analog measurement facilities as well as advanced digital test options.
  • To make you more productive, the 3920B is not only simple to use but has features that make testing a radio quick and repeatable.
  • The 3920B features easy-to-read meters with Pass/Fail color coding for instant Go/NoGo testing. With these easy-to-configure meters, you can set up unique Pass/Fail parameters for each radio type that you are testing.
  • Includes a host of automatic test and alignment for the most popular radios in the industry.

Standards and technologies supported

  • AM
  • FM
  • SSB
  • P25
  • P25 Phase 2
  • DMR (MOTOTRBO™)
  • NXDN™
  • TETRA
  • dPMR

Key Technical Specifications

  • Frequency Range: 10 MHz to 2.7 GHz
  • Timebase: 0.01 ppm + aging
  • Generate level range: +10 dBm to -130 dBm with ±1 dB accuracy (typical)
  • Generator phase noise: <-110 dBc/Hz @ 10 kHz offset
  • RF analyzer range: -130 dBm to 125 watts measurement range
  • Direct input power: 50 W Continuous, 125 W Cyclical

Data Sheets

– 3920B Specification Sheet Download
