1500-WA Series

Overview

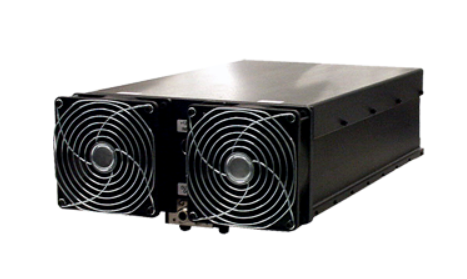

1.5kW, Uni-Directional RF Attenuator

1500-WA Series, 1500 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

Features

  • Self cooling design, needs no cooling plate.
  • Fully shielded against production of extraneous radiation.
  • Rugged construction.
  • Broadband operation.
  • Other attenuation values available upon request.
  • Models to cover all LTE frequencies.

Model Nomenclature

Power Ratings (W)Product TypeConnector GenderConnectors**Attentuation Value (dB)
1500 WattWAM/F – Male/FemaleN – N10 – 10 dB
1500 WattWAF/F – Female/FemaleE – IEC 7/1620 – 20 dB
1500 WattWA30 – 30 dB

Example: 1500-WA-MFN-10 (1500 Watt, WA Series, Male/Female N Connector, 10 dB)

**Call or Request Information below for custom connector options not shown
***Attenuators 1000 W and Above are not available on attenuation values less than 10 dB
